Cub Cadet Cast Aluminum Engine Repair — Cracked Oil Drain Port Saved from the Scrap Pile
A customer found us through a Google search with a problem a lot of people never realize is fixable: the cast aluminum oil drain port on his Cub Cadet engine had cracked, and he assumed the whole engine was done. He'd tightened the small 1/8" NPT drain plug a little too far, and the casting split at the threads.
The engine itself was sound. It had run well for years and had plenty of life left. The only thing standing between him and a working machine was a crack in the aluminum — the kind of repair we do all the time, and exactly the kind of work that keeps a good piece of equipment out of the landfill. We gave him an estimate up front. His words when he heard it: about a quarter of what a new engine would have cost him.
This is the everyday cast aluminum repair work we handle across Cecil County, Maryland, Delaware, and the Chesapeake Bay region — small engines, mowers, garden and farm equipment, and the metal parts people are too often told to simply replace.
What went wrong

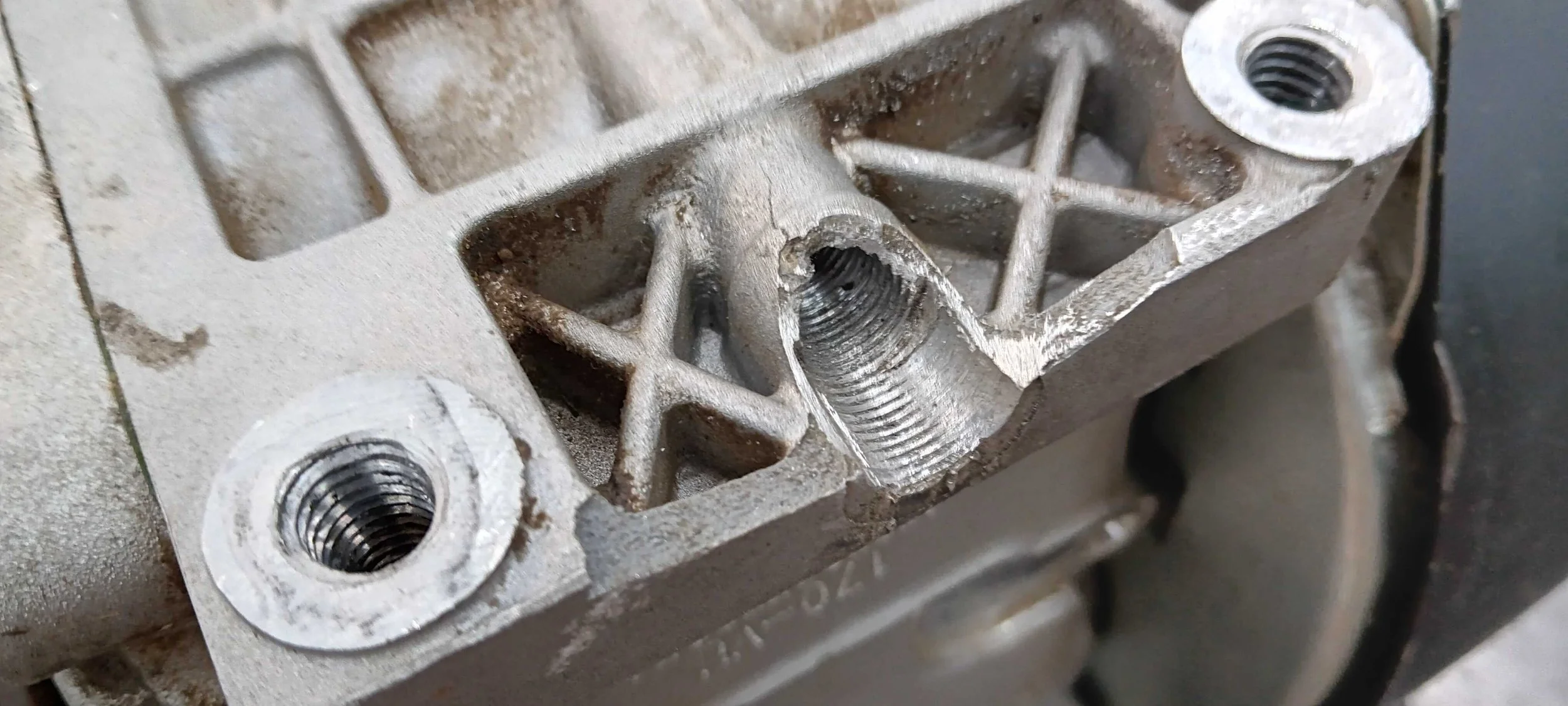

The damage was at the oil drain port on the bottom of the engine's aluminum oil pan. Over-tightening the 1/8" NPT drain plug had put enough stress on the casting to crack it — an easy thing to do, since aluminum threads don't forgive much. Left alone, a crack like this only travels further every time the engine heats and cools, so a clean repair means more than just filling the split. It has to stop the crack from ever moving again.
Two Ports, One Smart Fix
Here is where the repair got interesting. This engine had two 1/8" NPT drain ports in the casting from the factory — and only one of them was cracked. The other was in perfect condition and could handle draining the oil on its own.
That changed the best way to fix it. We didn't need to save the threads in the cracked port, because the good port could do the job. So instead of the long way around — filling the entire cracked port with weld, grinding it back to shape, then drilling and tapping a fresh hole — we could permanently seal off the cracked port with a plug and weld it solid. Both routes would have worked. The plug-and-seal route was just as sound, faster, and kept the cost down for the customer. Recognizing that the two-port casting made it possible is the part that saved him money.
The Right Filler for the Job
We chose 4943 filler wire for this repair. This was the bottom of the oil pan — a spot that needs sound, strong weld integrity — and 4943 gives excellent strength and reliable results on cast aluminum of this kind. Matching the filler to the specific part and its job is half of what makes a cast aluminum repair last. The wrong wire can leave you with a weld that looks fine and fails later; the right one becomes part of the casting.
Cast aluminum is an awkward material to repair around a threaded port — the heat wants to distort the casting and the crack wants to spread. Sealing the cracked port with a machined plug, rather than rebuilding it, gave us a clean, controlled repair. Here is how we did it.
How We Made the Repair
The Custom Plug

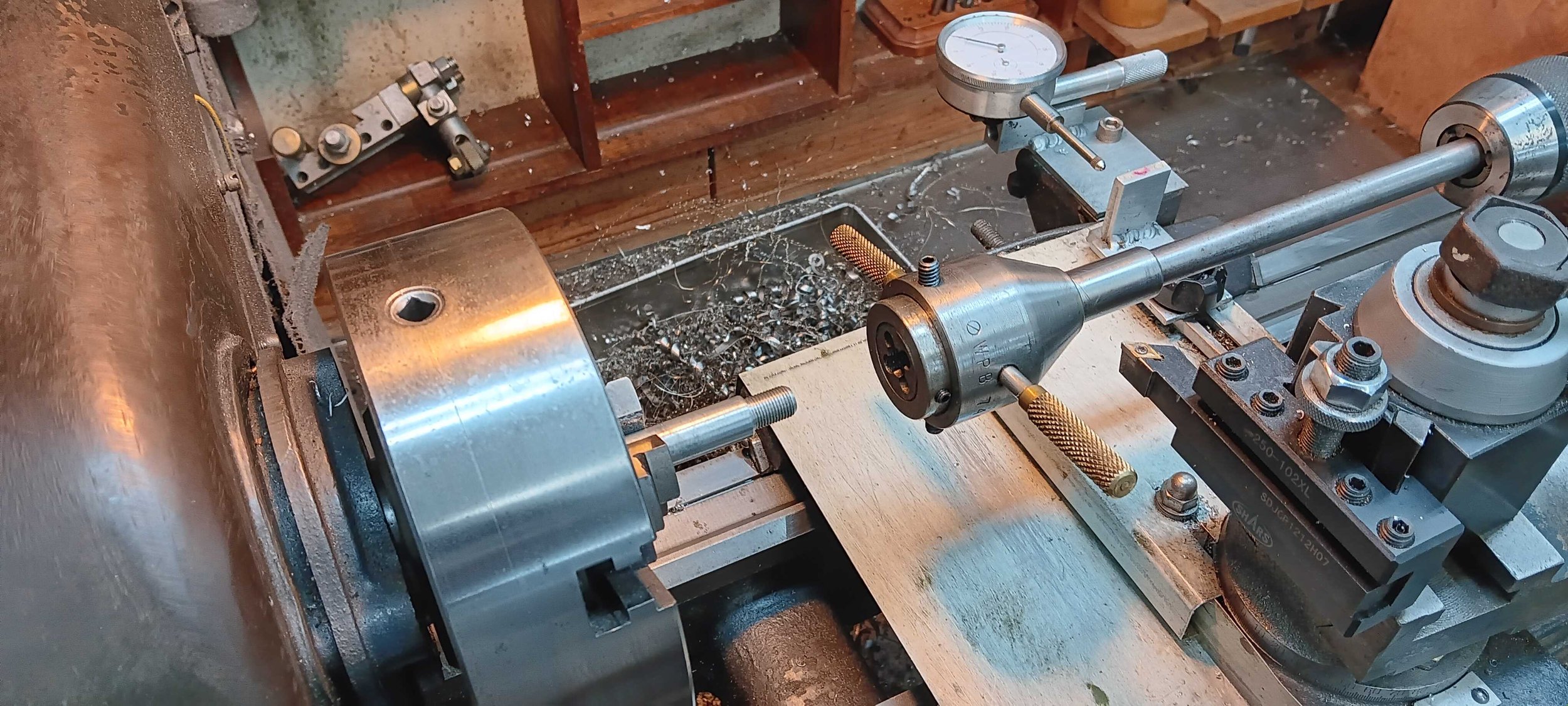

First we turned a custom aluminum plug on our lathe, threaded to seat firmly into the cracked port. This plug wasn't a temporary aid — it became a permanent part of the repair, sealing the cracked port for good once welded in. Turning it to fit the port exactly is a small piece of machine work, but it is what let us close off the port cleanly rather than trying to rebuild threads the engine no longer needed.
Stopping the Crack

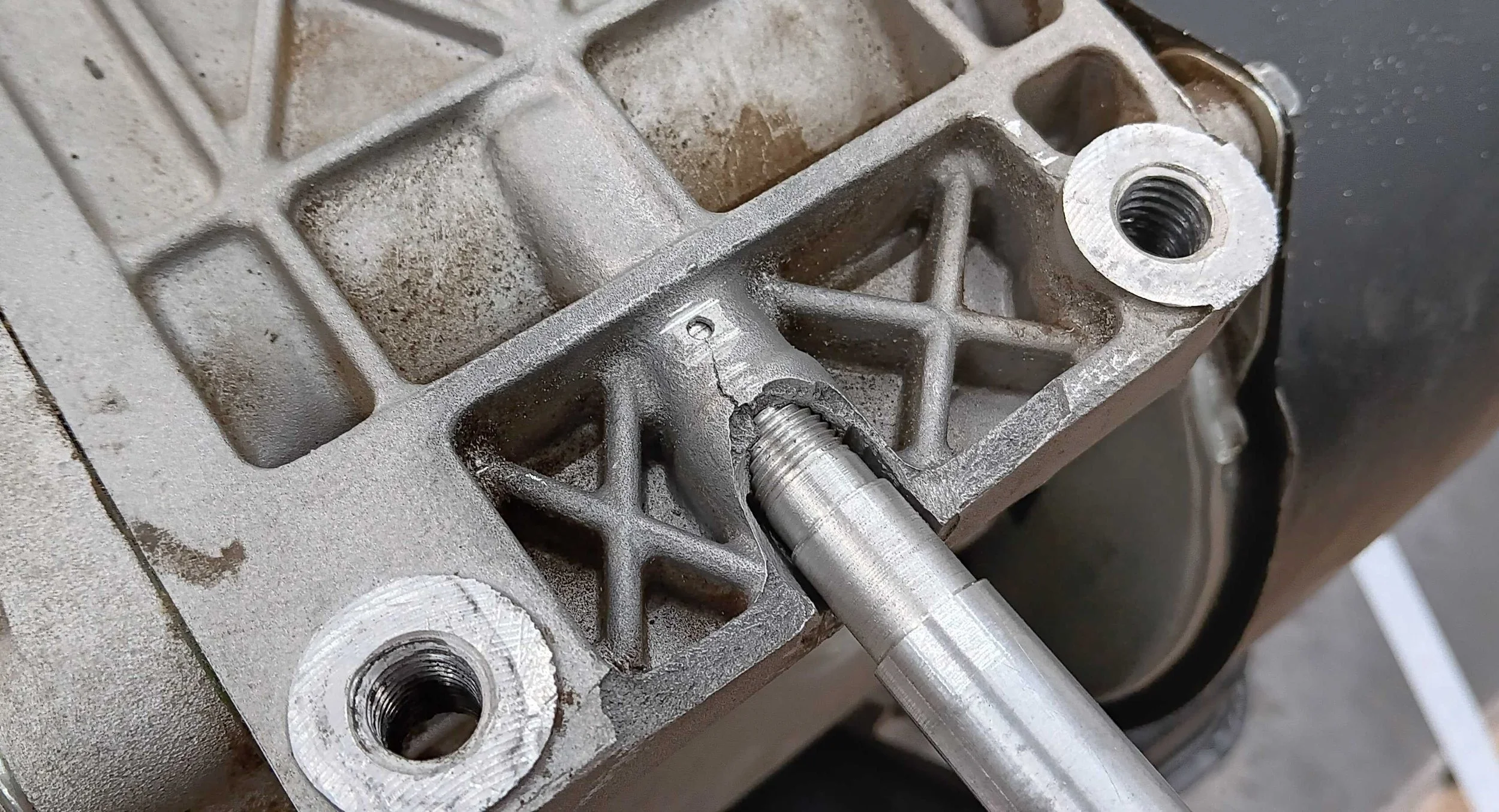

With the plug seated in the port, we turned to the crack in the surrounding casting. A crack in metal keeps travelling unless you stop it, so we drilled a small hole at the end of the crack to arrest it — a precise stop that keeps it from spreading further under the heat of welding or the stresses of running. Having the plug already in place gave us a solid, located position to work from. A little burr work along the crack prepared it to take weld cleanly
The Weld

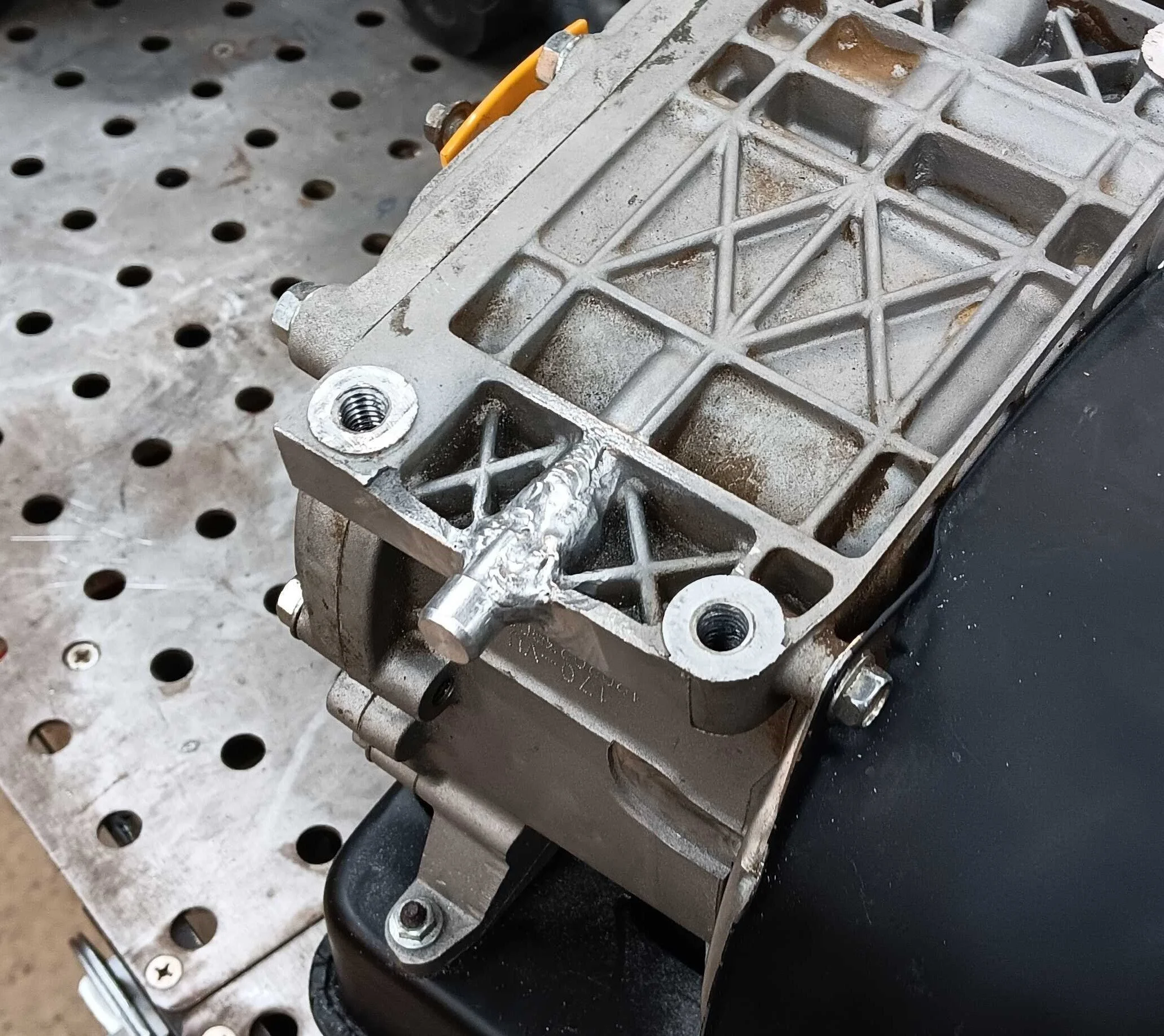

Then we welded it all in one repair — the plug welded solidly into the port and the crack welded over at the same time, tying the whole area back into sound, sealed metal. The cracked port was now permanently closed, the crack was stopped and sealed, and the casting was whole again. We left the reinforcing weld proud rather than grinding it flush: the extra material is strength, and grinding it back would remove some of the very reinforcement that makes the repair sound.
The Result

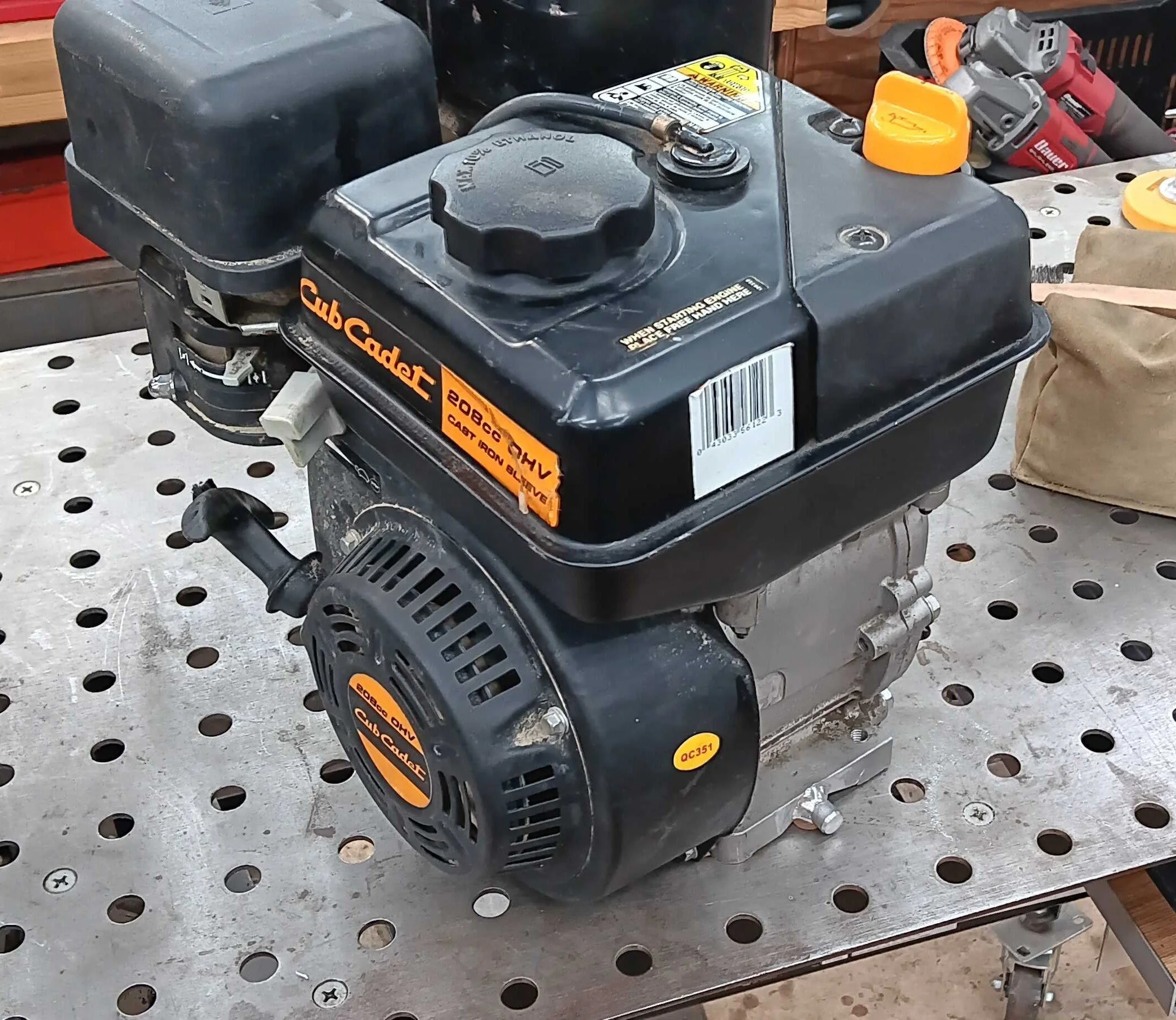

The finished repair was sound, clean, and professional. The cracked port was sealed for good, the engine drained through its remaining good port exactly as designed, and the machine went back to the work it had been doing well for years. The customer got it back for a fraction of the cost of a new engine — and a perfectly good motor stayed out of the trash.
Before You Scrap It, Let Us Look at It
This is the kind of repair we handle every week — cracked cast aluminum on small engines, mowers, garden equipment, farm machinery, and the everyday metal parts that keep a household or a property running. A lot of it is quick, straightforward work for us, and it saves people the cost and waste of replacing something that only needed a proper repair.
If you've got a cracked casting, a broken bracket, or a part someone told you couldn't be fixed, bring it to us before you scrap it. We serve Cecil County, Maryland, Delaware, and the Chesapeake Bay region, and we'll give you an honest estimate on whether it's worth saving. Often, it is.
